Examples

Here we show a few simple examples on how to use sdf_tools.

A Sphere…

Create the SDF of a single sphere in the middle of a domain:

sphere.py
#! /usr/bin/env python

import sdf_tools

# first we need to allocate a uniform grid

offs = (0., 0., 0.) # start of the grid
dims = (64, 64, 64) # resolution of the grid
exts = (1.0, 1.0, 1.0) # extents of the grid

grid = sdf_tools.Grid.Uniform(dims, offs, exts)

# now we create a sphere description
center = (0.5, 0.5, 0.5)
radius = 0.4

sphere = sdf_tools.Sdf.Sphere(center, radius, inside=True)

# apply the sdf to the grid points
grid.evaluate_sdf(sphere)

# dump the grid to .bov format, can be open with visit or paraview
grid.dump("sphere.bov")

The above script can be run by typing

python 01_sphere.py

The resulting files sphere.bov and sphere.values can be visualiszed with visit.

../_images/sphere.png

Isosurfaces of the sphere SDF obtained from sphere.py.

Binary operations

It is possible to apply operations between several shapes. Let us create the union of a ball and a capsule (see Capsule).

02_union.py
#! /usr/bin/env python

import sdf_tools

offs = (0., 0., 0.)
dims = (128, 64, 64)
exts = (2.0, 1.0, 1.0)
grid = sdf_tools.Grid.Uniform(dims, offs, exts)

# create 2 shapes
sphere  = sdf_tools.Sdf.Sphere(center=(1.0, 0.5, 0.5),
                               radius=0.4, inside=True)

capsule = sdf_tools.Sdf.Capsule(start=(0.3, 0.5, 0.5),
                                end  =(1.7, 0.5, 0.5),
                                radius = 0.2, inside=True)

# create a union of the 2 shapes
my_sdf = sdf_tools.Sdf.Union(sphere, capsule)

# evaluate on the grid and dump to file
grid.evaluate_sdf(my_sdf)
grid.dump("union.bov")
../_images/union.png

0 - Isosurface of the SDF obtained from 02_union.py.

More complex geometries

It is very easy to extend the previous example to create more complex geometries. An example is shown here:

03_complex.py
#! /usr/bin/env python

import sdf_tools

offs = (0., 0., 0.)
dims = (128, 64, 64)
exts = (2.0, 1.0, 1.0)
grid = sdf_tools.Grid.Uniform(dims, offs, exts)

sphere = sdf_tools.Sdf.Sphere(center=(1.0, 0.5, 0.5),
                              radius=0.4, inside=True)

capsule0 = sdf_tools.Sdf.Capsule(start=(0.3, 0.5, 0.5),
                                 end  =(1.7, 0.5, 0.5),
                                 radius = 0.2, inside=True)

capsule1 = sdf_tools.Sdf.Capsule(start=(1.3, 0.5, 0.1),
                                 end  =(0.7, 0.5, 0.9),
                                 radius = 0.2, inside=True)

my_sdf = sdf_tools.Sdf.Difference(sdf_tools.Sdf.Union(sphere, capsule0),
                                  capsule1)

grid.evaluate_sdf(my_sdf)
grid.dump("three.bov")
../_images/three.png

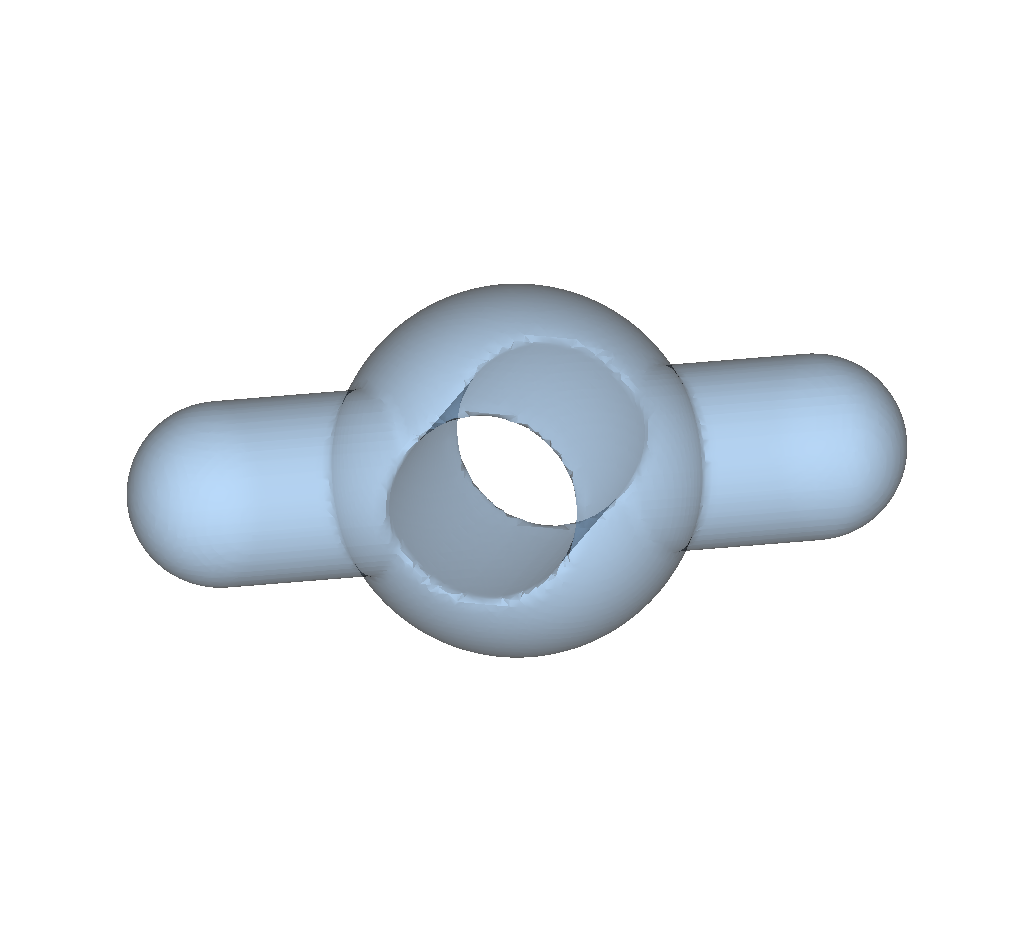

0 - Isosurface of the SDF obtained from 03_complex.py.
